Extruded porcelain facade systems
Frontek’s revolutionary cladding system features double-ventilated extruded porcelain, combining cutting-edge technology with expert craftsmanship. ICC Certified and backed by Global EPDs, it delivers both aesthetic excellence and superior performance. Experience the Frontek difference.
ABOUT FRONTEK
What Is Frontek ?
An ICC-certified, high-performance extruded porcelain rainscreen system engineered for modern architecture.

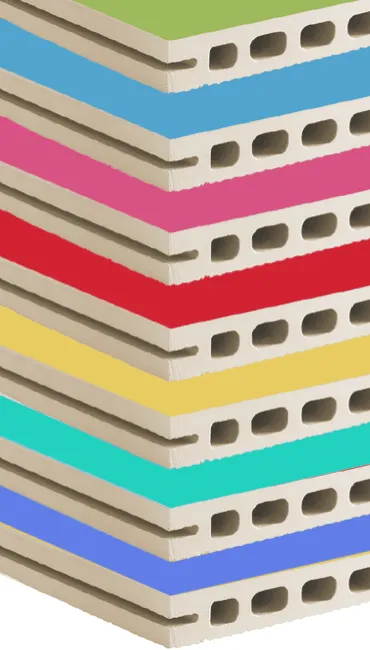

Frontek is an ICC-certified extruded porcelain open-jointed rainscreen system, designed as a complete building envelope solution. Featuring a double-ventilated façade with an optically flat honeycomb structure, it meets or exceeds code requirements while offering unmatched design flexibility. The lightweight system, including tiles and Plus structure, weighs just 6.55 lb/sf and is available in a limitless range of colors, designs, and sizes from 300 x 800 mm to 1000 x 3000 mm.
Our Products
Innovative Porcelain Façade Systems by Frontek
Frontek Panels Catalogue
Explore our Frontek resources, including product catalogues, technical specifications, installation guidelines, and system details. Access everything you need to understand the performance, design possibilities, and application of Frontek solutions.

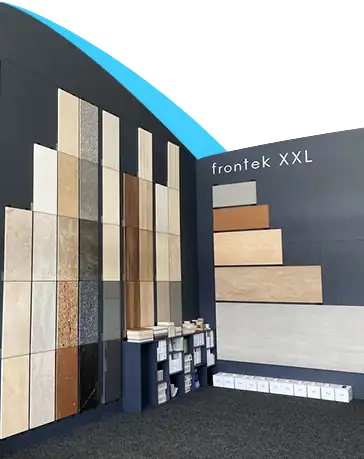

XXL
Elevate façade design with our XXL extruded ceramic panels (1000 x 3000 mm). Experience bold aesthetics, minimal joints, and seamless beauty.

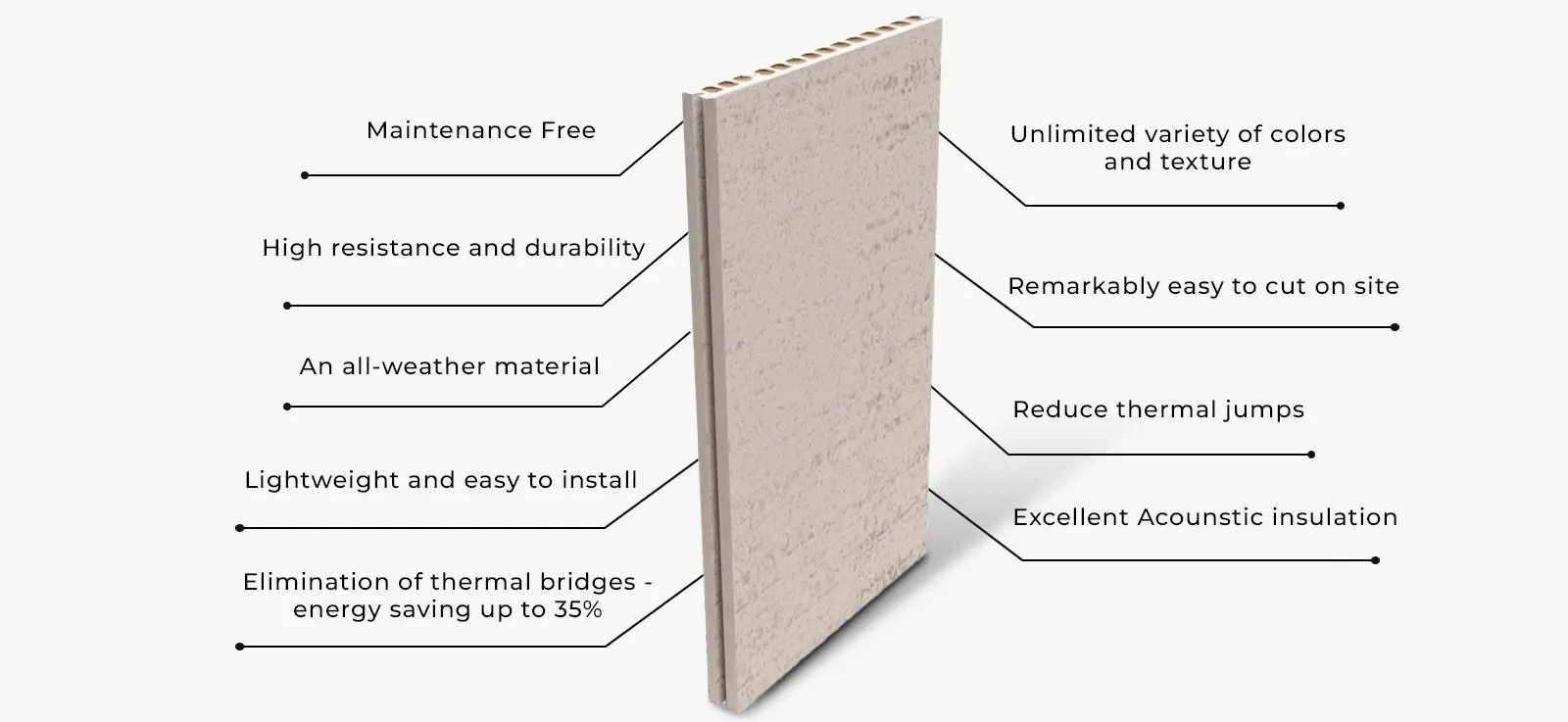

The Frontek™ Rainscreen Extruded Porcelain Siding System Strength
Surpasses all ICC fire resistance requirements
Made from naturally non-combustible porcelain and combined with an advanced open-joint cladding system, it effortlessly meets stringent fire codes. Frontek is fully compliant with ASTM E119, NFPA 285, and ASTM E136 standards.
Factory Rectified
Each panel is expertly ground after firing, a process called "rectification," ensuring precise edges for a flawless fit. This attention to detail prevents shrinkage or expansion during installation, guaranteeing a perfect finish for your project.
Acoustic Insulation
The Frontek System provides superior sound protection, enhancing acoustics by ~4dBA at 1000 Hz. It blocks external noise, minimizes indoor sound transmission, and features a ventilation layer for an improved noise barrier effect.
Lightweight & Flexibl
The Frontek system, including panels and Plus Structure, weighs only 6.55 lbs/ft². It comes in customizable colors, designs, and sizes (15.95×31.50" to 39.3×118"). No sealing or coating is needed for exposed areas like kerf cuts or mitered joints.
All-weather material
Frontek demonstrates exceptional performance in the face of the most challenging environmental conditions, showcasing a superior and unwavering resistance to various weather elements.
Virtually no maintenance
Porcelain’s high density and low absorption prevent dirt and graffiti buildup. In open joint cladding, it resists efflorescence, drips, and stains—ensuring a maintenance-free façade.
Extruded Porcelain Traditional Materials
| Feature | Frontek Extruded Porcelain | Fibercement Product Type 1 | Terracotta | ACM | Natural Stone | Fibercement Product Type 2 | GRC |
|---|---|---|---|---|---|---|---|
| AESTHETIC VERSATILITY | Any design/texture is possible | Glazed | Traditional glazing | Laminated paint | Only one nature | Limited designs | Limited designs |
| BREAKING LOAD | 1349 lbf (6000N) | 779 lbf (3466N) | 944 lbf (4200N) | Elasticity | Depends on type & thickness | Unknown | Unknown |
| WEIGHT | 6.75 lb/sqft (33 Kg/m²) | 3.1 lb/sqft (15 Kg/m²) | 8.6 lb/sqft (42 Kg/m²) | 1.65 lb/sqft (8 Kg/m²) | 9.22–16.4 lb/sqft (45–80 Kg/m²) | 5.5 lb/sqft | Up to 16.4 lb/sqft |
| WATER ABSORPTION | 0.5% | 6% | 6% | 0% (Metallic) | 2–10% | 32% | <10.62% |
| EASE OF INSTALLATION | Factory rectified, easy to cut on site | Produced molded | Caliber required, cut not rectified | Differences in reflection | Requires perforations and very heavy | Requires additional perforations | Heavy equipment required |
| MAINTENANCE | Very Low, almost none | High | High | Affected by UVA & UVB rays | High | High | High |
| FIRE RESISTANCE | NFPA285, A1 | A2s1, d0 | Bs1, d0 | Bs1, d0 | A1 | Depends on the type of panels | Depends on the type of panels |
| AVAILABILITY | Five basic colors in stock | Limited | Limited | Limited | Limited | Limited | Limited |
SYSTEMS
PLUS SYSTEM
It offers easy installation solutions and flexibility in the resolution of singular points. It is installed using vertical profiles and clamps that allow the piece to be anchored horizontally or vertically
SUPER PLUS SYSTEM
It features both vertical and horizontal profiles for anchoring the workpiece via clips. It allows for the combination of different part lengths, countertop designs, and multiple rigging options.
Frontek Advantages
FIREPROOF
A-Rated fire resistance ensures superior safety for all applications.
COLOUR STABILITY
Guaranteed Resistance to Color change throughout the life span of the facade.
LOW MAINTENANCE
Maintenance costs are minimized thanks to the material's inherent durability.
EASY CLEANING
The surface design supports Easy Cleaning, reducing long-term effort and cost.
LONGER LIFE SPAN
Built for longevity, offering a durable facade solution with a significantly longer service life.
MARINE PROOF
Highly durable and resistant, making it suitable for even the harshest marine environments.
Technical Details
